Tow bar - Hyundai I 20 Hatchback 2009-2014 Detachable Vertical Umbra Rimorchi

Description

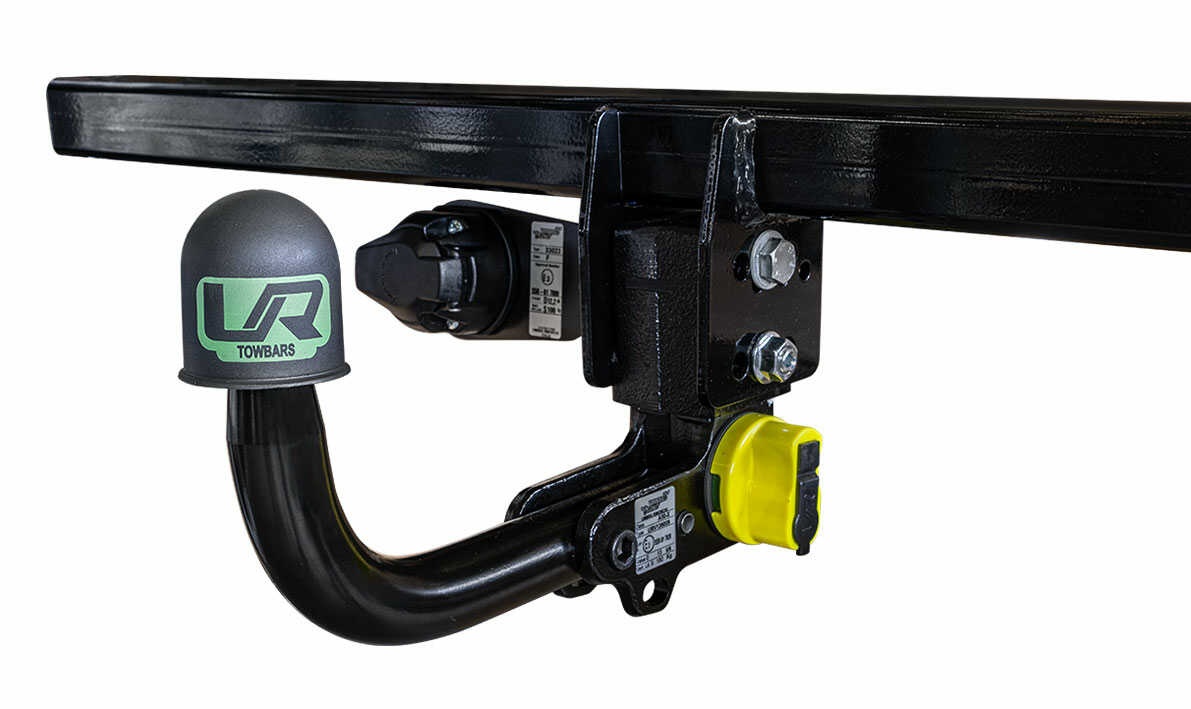

Vertical demonable towing hook for“Hyundai I 20 Hatchback 2009-2014”is produced by Umbra Rimorchi, a company based in Italy, whose activity began in 1976. Umbra Rimorchi is currently one of the largest manufacturers and distributors of tow bars in Europe, with the brand also present on other continents such as Africa, Asia, Australia and America.

Each product is homologated and certified at European level, with the approval also valid within Romania. As such, Umbra Rimorchi tow bars carry individual type-approval and do not require R.A.R. certification.

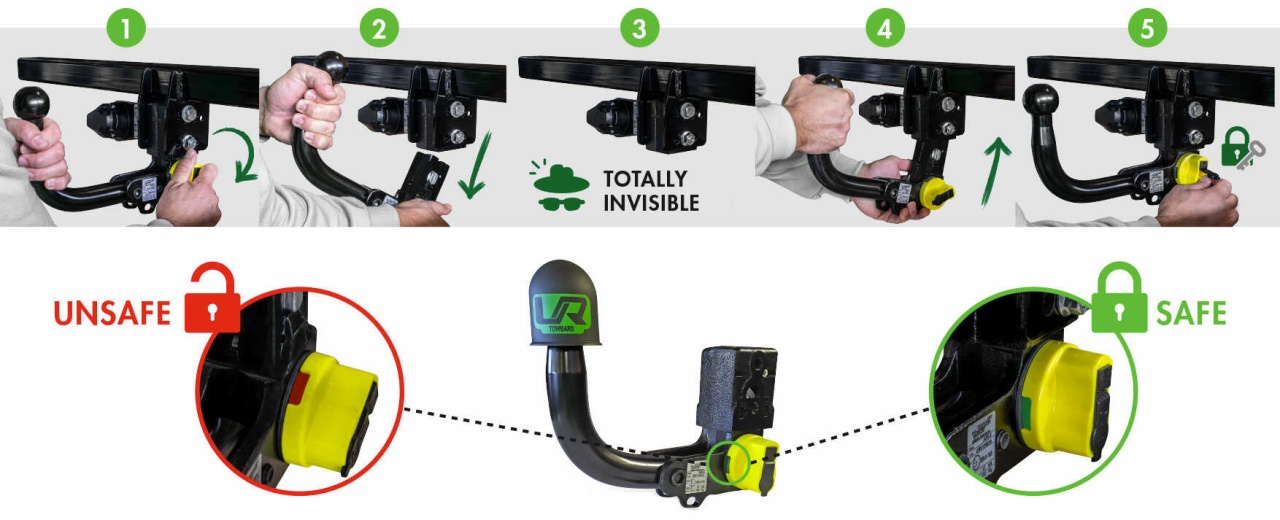

The type of hook is vertically demonable, the towing ball being detachable using a key, the operation of mounting and dismounting the ball being achieved in a very short time. The main advantages of this type of product are the anti - theft system, the quick disassembly of the ball and the fact that once the towing ball is removed, the towing hook is no longer visible.

The maximum load of its towing is1100kg, while the vertical load of pressing on the ball is50kg.

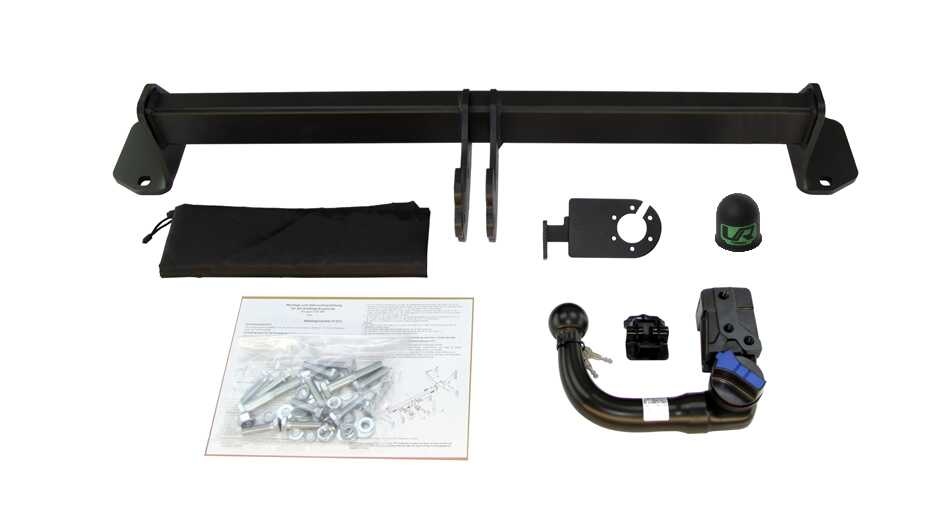

Vertical demonable towing hook for“Hyundai I 20 Hatchback 2009-2014” is dedicated to your car and does not affect its warranty. For fitting, it is supplied together with the mounting accessories and the technical diagram, in accordance with the car manufacturer's instructions.

For the correct operation of the light signals both on the machine and on the towed device, it is necessary to install a special electrical installation, provided with the CAN- BUS protection mode, which you can find in the section"Additional accessories';.

The product's quality is guaranteed by the specifics of the manufacturing process, whose advantages include electrostatic powder coating and automation of the production flow using industrial robots. The guarantee offered for products the Shadow Rimorchi brand is validFive years.

After the first 1000 km, the bolts must be checked and tightened, in accordance with the technical specifications supplied with the product. It is also recommended to periodically measure the diameter of the tow ball to ensure it is not less than 49mm.

General comments:

1. The maximum towing load and vertical nose weight depend on the total weight of the vehicle and its engine. Please check the vehicle registration certificate.

2. If the tow ball interferes with the vehicle's number plate, it must be removed and used only when needed.

3. If the tow ball interferes with the parking sensors, it must be removed and used only when needed.
