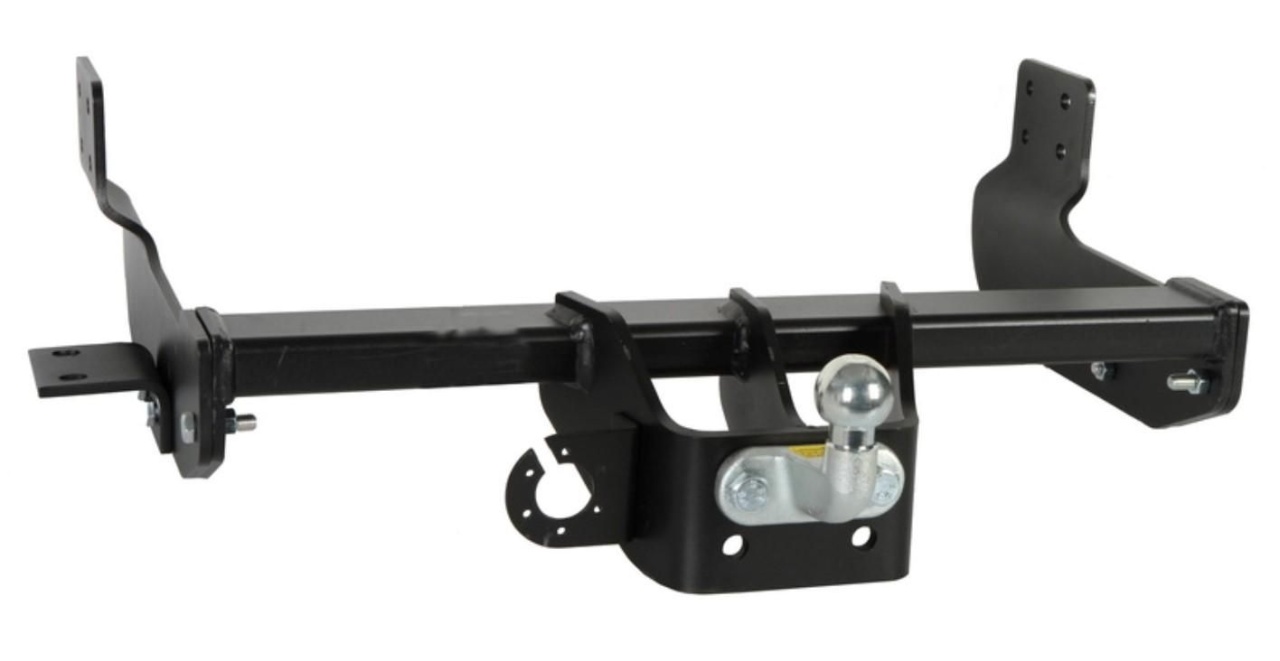

Tow bar - Man TGE Van Axle Single without Step 2016-present 2-bolt flange Hakpol

Description

The towing hook shall be designed to be used for the test.“Man TGE Van 2016-prezent”It is produced by Hakpol, a company based in Poland, whose activity began in 1991. Hakpol currently produces over 800 tow bar models for a wide range of vehicles.

Each product is homologated and certified at European level, with the approval also valid within Romania. As such, Hakpol tow bars carry individual type-approval and do not require R.A.R. certification.

The maximum load of its towing is3500kg, while the vertical load of pressing on the ball is150kg.

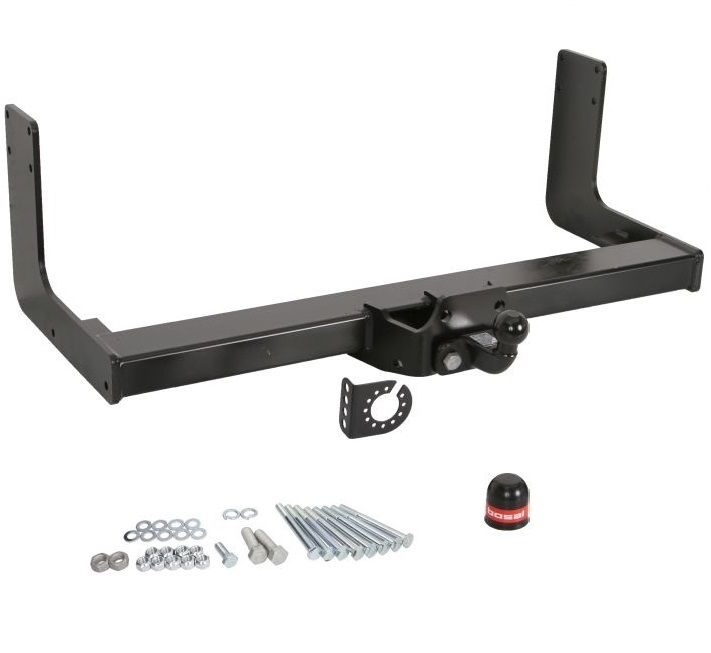

The towing hook shall be designed to be used for the test.“Man TGE Van 2016-prezent” is dedicated to your car and does not affect its warranty. For fitting, it is supplied together with the mounting accessories and the technical diagram, in accordance with the car manufacturer's instructions.

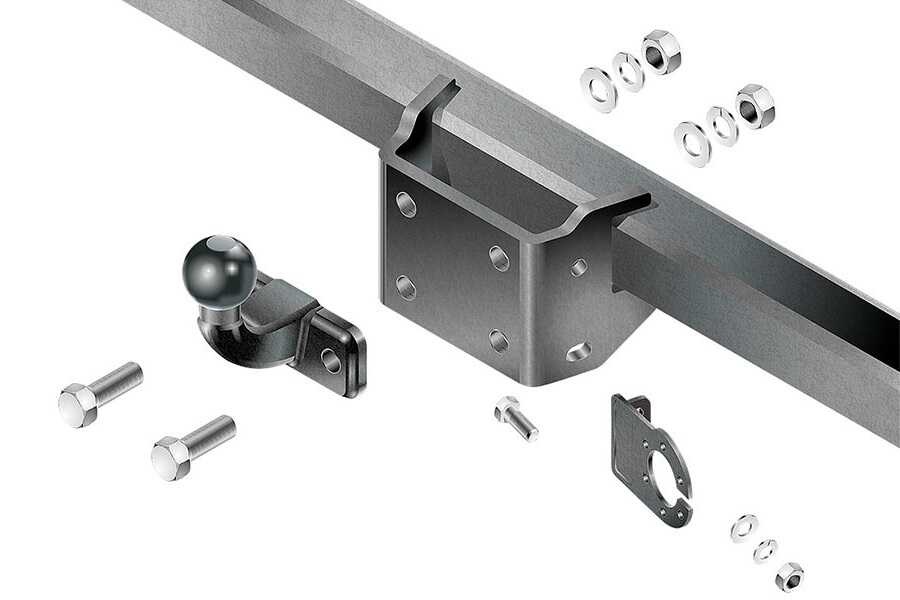

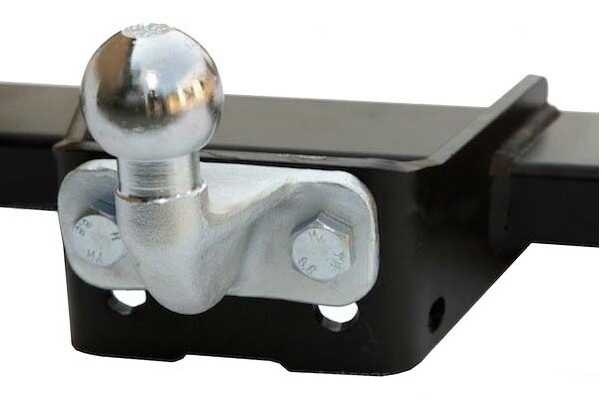

The type of towing hook is a flange type, the towing ball being detachable using the two screws. The advantages of this type of product are the possibility of adjusting the height of the drawball and replacing it as the replacement part in case of wear. Due to these characteristics, the flange hooks are mainly suitable for self - utility and SUVs, having utility in agricultural activities, car transport, transportation of machinery etc.

For the correct operation of the light signals both on the machine and on the towed device, it is necessary to install a special electrical installation, provided with the CAN- BUS protection mode, which you can find in the section"Additional accessories';.

The product's quality is guaranteed by the specifics of the manufacturing process, whose advantages include electrostatic powder coating and automation of the production flow using industrial robots. The guarantee offered for Hakpol brand products is validFive years.

After the first 1000 km, the bolts must be checked and tightened, in accordance with the technical specifications supplied with the product. It is also recommended to periodically measure the diameter of the tow ball to ensure it is not less than 49mm.

General comments:

1. The maximum towing load and vertical nose weight depend on the total weight of the vehicle and its engine. Please check the vehicle registration certificate.

2. If the tow ball interferes with the vehicle's number plate, it must be removed and used only when needed.

3. If the tow ball interferes with the parking sensors, it must be removed and used only when needed.
